Industrial Large Hvls Fans With Durable Motor IP64 Protection
  • Name

Industrial Large Hvls Fans With Durable Motor IP64 Protection

MOQ: 1Pcs
Price: USD500-USD5000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 3 DAYS After Deposit
Payment Method: T/T,D/A,Western Union,MoneyGram
Supply Capacity: 1500SET/MONTH
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
KC
Certification
CE,ISO,SGS
Hight:
7.3m
Type:
Permanent Magnet Brushless Internal Rotor
Name:
Permanent Magnet Synchronous Direct Drive
Feature:
360 Degree Rotation Pole Pedestal
Usage:
Industrial
Power (W):
0.66KW
Voltage (V):
380v/50HZ
Diameter(meter):
12ft
Highlight:

Industrial Large Hvls Fans

,

Industrial hvls industrial fans

,

IP64 Protection Large Hvls Fans

Product Description

Durable Motor <38dB Industrial Fan 380v/50HZ 2.6A Efficient Cooling​





Product Overview:

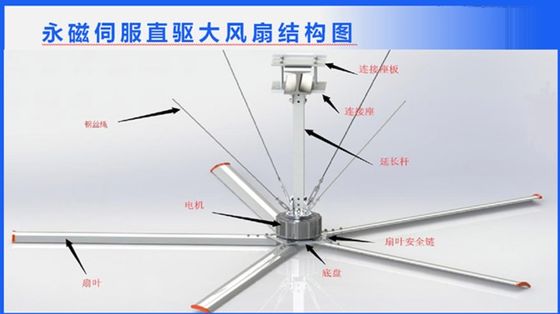

This industrial fan features a unique high-density rare earth permanent magnet internal rotor structure, ensuring reliable operation without detachment or demagnetization. Its design promotes natural cooling and low temperature rise. The direct-drive, brushless motor operates quietly, requires no maintenance, and eliminates oil pollution. The fan boasts high power density in a small, lightweight package and incorporates a sealed structure with IP64 protection.


Key Features:

Durable Motor: The IP64-rated internal rotor motor is protected against water, moisture, and dust, eliminating the need for reserved heat dissipation.
Efficient Cooling: Integrated heat sinks ensure efficient heat dissipation, preventing demagnetization.
Safety: Temperature sensors monitor the motor temperature, providing a protection function.




Parameters



Model Diameter Power Supply Max. Current (Amps) Power Max Speed Max Air Volume (m³/min) Noise Level (dB) Weight (KG) Area Covered (m²) Blades Qty Remarks
RDF-S3600 3600mm (12ft) Single 220V/50HZ 2.6A 0.66KW 90 RPM 4522 <38 72 20-24 5 Small Diameter
RDF-S4200 4200mm (14ft) Single 220V/50HZ 2.6A 0.66KW 80 RPM 5306 <38 75 22-26 5 Small Diameter
RDF-S5200 5200mm (17ft) Single 220V/50HZ 2.6A 0.66KW 70 RPM 7065 <39 78 25-30 5 Small Diameter
RDF-B6200 6200mm (20ft) Single 220V/50HZ 4.5A 1.3KW 60 RPM 10747 <39 100 32-37 5 Large Diameter
RDF-B6200 6200mm (20ft) Three 380V/50HZ 3.1A 1.3KW 60 RPM 10747 <39 100 32-37 5 Large Diameter
RDF-B6700 6700mm (22ft) Single 220V/50HZ 4.5A 1.3KW 55 RPM 12560 <39 105 35-40 5 Large Diameter
RDF-B6700 6700mm (22ft) Three 380V/50HZ 3.1A 1.3KW 55 RPM 12560 <39 105 35-40 5 Large Diameter
RDF-H7200 7200mm (24ft) Single 220V/50HZ 4.5A 1.3KW 58 RPM 15197 <39 115 38-44 5 High Air Volume
RDF-H7200 7200mm (24ft) Three 380V/50HZ 3.1A 1.3KW 58 RPM 15197 <39 115 38-44 5 High Air Volume





Advantages


Exceptional Airflow: Provides high-volume airflow, effectively cooling large areas and improving ventilation in industrial and commercial settings.
360-Degree Rotation: Allows for complete directional airflow, ensuring even distribution of air throughout the space and enhancing comfort.
Durable and Sturdy: Constructed with high-quality materials designed to withstand harsh environments, ensuring long-term reliability and performance.
Adjustable Height: The pedestal design enables height adjustments, allowing for targeted airflow at various levels and adaptability to different spaces.
Energy Efficiency: Engineered to deliver powerful airflow while consuming less energy, reducing overall operational costs.
Portability: Lightweight and equipped with wheels, making it easy to move the fan to different locations as needed.
Low Maintenance: Designed for easy cleaning and maintenance, minimizing downtime and ensuring consistent performance.
Versatile Use: Suitable for a variety of applications, including warehouses, factories, workshops, and outdoor events.





Tags:

hvls ceiling fans,

hvls industrial fans,

hvls warehouse fans
