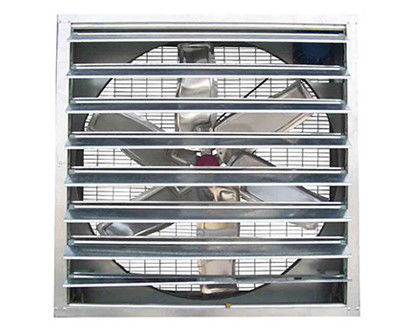

400rpm Negative Pressure Ventilation Fan Durable With Heavy Duty Blades
  • Name

400rpm Negative Pressure Ventilation Fan Durable With Heavy Duty Blades

MOQ: 1Pcs
Price: USD500-USD5000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 3 DAYS After Deposit
Payment Method: T/T,D/A,Western Union,MoneyGram
Supply Capacity: 1500SET/MONTH
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
KC
Certification
CE,ISO,SGS
Model Number
1220
Name:
Galvanized Negative Pressure Fan
Speed:
400rpm
Voltage:
220V/380v
Air Volume:
68000m³/h
Site:
1380X1380X400(mm)
Noise Level:
≤68dB
Color:
Silver
Highlight:

400rpm Negative Pressure Ventilation Fan

,

400rpm negative air pressure fan

,

Durable Negative Pressure Ventilation Fan

Product Description





400(r/m) Galvanized Negative Pressure Fan 1380X1380X400(mm)



Application

Steel-plastic fan blade fans are widely used in various locations, including internet cafes, factories, entertainment venues, shopping malls, supermarkets, offices, hotels, hospitals, stations, gymnasiums, dance halls, auditoriums, conference rooms, schools, and factory workshops.


Negative Pressure Ventilation and Cooling Principle

The negative pressure cooling system operates through its core component: the evaporative cooling pad (wet curtain). A thin film of water coats the corrugated fiber paper surface. When dry, hot outdoor air is drawn through the wet curtain by the fan, the water in the film absorbs heat from the air and evaporates. This evaporation process removes a significant amount of latent heat, lowering the air temperature as it passes through the pad. The resulting cool, humid air enters the interior space, mixes with the warmer indoor air, and is then exhausted outside by the fan.
The evaporative cooling pad can be installed externally or embedded within the structure. Depending on the factory's specific conditions, horizontal, longitudinal, or central ventilation arrangements can be implemented. The evaporative cooling system has a low failure rate, and system maintenance is straightforward.


Performance Characteristics of Negative Pressure Ventilation and Cooling

Low Investment and Operating Costs: Significant energy savings are achieved. For the same workshop area, using evaporative cooling ventilation requires a much lower investment than central air conditioning or other air conditioning equipment. Electricity consumption is only about one-tenth of that of central air conditioning.
Healthy, Environmentally Friendly, and Scientific Cooling: The evaporative cooling ventilation system cleverly combines scientific principles with natural physics. It does not require the use of any refrigerants (such as Freon or other CFCs) to achieve a cooling effect, maintaining a comfortable working environment temperature (26-30°C).
Air Purification and Disease Prevention: In addition to purifying the air and reducing temperature, the evaporative cooling system effectively blocks dust and particles carried by incoming air. It continuously circulates, flows, and purifies the air, effectively preventing the incidence of occupational diseases and the spread of epidemics.




Technical parameter



Feature Specification Unit
Fan Diameter 1270 mm
Fan Blade Rotation Speed 400 r/m (RPM)
Airflow 41000 m³/h
Noise Level 60 dB
Rated Voltage 380 V
Power 1.1 kW
Dimensions 1380 x 1380 x 400 mm
Weight 85 kg
