MOQ: | 1Pcs |
Price: | USD500-USD5000/SET |
Standard Packaging: | With regular Film and Carton |
Delivery Period: | 3 DAYS After Deposit |
Payment Method: | T/T,D/A,Western Union,MoneyGram |
Supply Capacity: | 1500SET/MONTH |

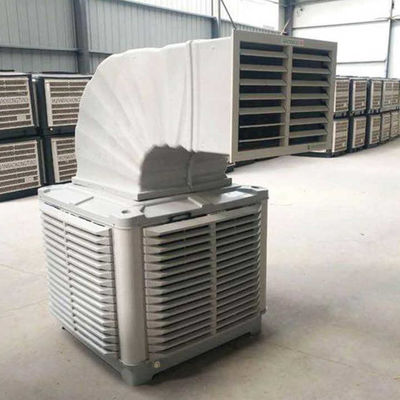

220v/380v 22000 M3h Wet Commercial Industrial Portable Evaporation Air Cooler
Product Description
Model | 1.1kW | 1.5kW | 2.2kW | 3.0kW | 4.0kW | 5.5kW |
Airflow | 18,000m³ | 22,000m³ | 25,000m³ | 30,000m³ | 40,000m³ | 50,000m³ |
Voltage | 380V | 220/380V | 380V | 380V | 380V | 380V |
Amps | 2.7/4.8A | 3.4A | 4.5A | 5.8A | 5.8A | 11A |
Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
Pressure | 180pa | 180pa | 330pa | 350pa | 350pa | 350pa |
Noise | ≤73dB | ≤73dB | ≤75dB | ≤75dB | ≤78dB | ≤80dB |
Water Consumption | 5-10L/h | 5-10L/h | 10-15L/h | 40L/h | 30-50L/h | 30-50L/h |
Water Tank Capacity | 25L/h | 25L/h | 25L/h | 45L/h | 50L/h | 50L/h |
Outlet Size | 670*670mm | 670*670mm | 670*670mm | 800*800mm | 900*900mm | 900*900mm |
Frame Size | 1100×1100×930mm | 1100×1100×930mm | 1100×1100×1150mm | 1250×1250×1200mm | 1430×1430×1380mm | 1430×1430×1380mm |
Weight | 55kg | 55kg | 65kg | 120kg | 120kg | 120kg |
Effective Area | 90-120m² | 100-150m² | 150-200m² | Suggested pipeline | 300-500m² (Suggested pipeline) | 300-500m² (Suggested pipeline) |
• Dual blade options: 3-blade (high-velocity airflow) or 9-blade (ultra-quiet operation).
• Hybrid impeller design: Nylon-reinforced metal hub for enhanced rotational stability.
• Outflow vent: PC (polycarbonate) construction with thermal-distortion resistance, UV-stabilized anti-yellowing, and uniform molecular density.
Feature
1. High Airflow Capacity: With an impressive cooling capacity of 18000 m³/h, this air cooler is capable of effectively ventilating and cooling large areas.
2. Durable PP Material: Constructed from high-quality polypropylene (PP), the cooler is resistant to corrosion and wear, ensuring long-lasting durability.
3. Water Cooling System: Utilizes evaporative cooling technology, which is energy-efficient and environmentally friendly, using water to cool the air.
4. Portable Design: Equipped with wheels and handles for easy mobility, allowing users to move the unit to different locations as needed.
5. Large Water Tank: Features a spacious water tank that allows for extended operation without frequent refills, enhancing convenience.
6. Energy Efficient: Consumes less power compared to traditional air conditioning units, leading to lower energy costs.
7. Improved Air Quality: Helps to reduce dust and allergens, providing a healthier environment for occupants.
8. Versatile Applications: Suitable for a variety of settings, including industrial spaces, commercial areas, and outdoor activities.
9. User-Friendly Controls: Easy-to-use controls for adjusting cooling settings and fan speeds to meet specific needs.
Application
Widely used in: textile, clothing, injection molding, casting, toys, printing, electronics, laundry, boiler rooms and other high-temperature industrial factories; shopping malls, supermarkets, waiting rooms, hotels, hotels, hospitals, schools and other public places; greenhouses, animal husbandry, flowers and other agricultural places.
Question:
Q: What is your minimum order quantity?
A: We accept small orders, but the shipping fee will be very high
Q: Can you open our own brand?
A: Yes, we can provide OEM/ODM services and label your products with logo.
Q: Can you provide the voltage?
Answer: The normal voltage is 380v-50hz-3 phase, and can be customized according to your requirements.
Q: How is the quality of your products?
A: All products are produced strictly in accordance with international standards and have passed the CE certification, CCC certification and ISO9001:2008 international quality management system.
Q: Can you accept inspections from third-party testing agencies?
Yes of course. Our products have been inspected by a third-party testing agency authorized by customs. And obtained a complete inspection report.
