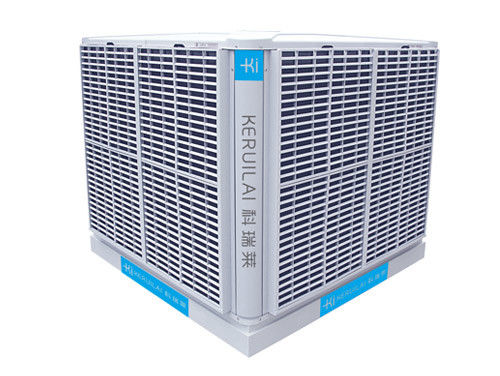

Eco Friendly Electric Commercial Evaporative Air Cooler Warehouse Evaporative Cooling System
  • Name

Eco Friendly Electric Commercial Evaporative Air Cooler Warehouse Evaporative Cooling System

MOQ: 1Pcs
Price: USD500-USD5000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 3 DAYS After Deposit
Payment Method: T/T,D/A,Western Union,MoneyGram
Supply Capacity: 1500SET/MONTH
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
KC
Certification
CE,ISO,SGS
Features:
High Performance Wet Curtain
Max Airflow Rate:
22000(m3/h)
Airflow Style:
Axis-flow
Control Type:
Remote Control
Noise Level:
≤75Db(A)
Power Source:
Electric
Model:
KM22
Function:
Automatic Drainage Function
Highlight:

Eco Friendly Commercial Evaporative Air Cooler

,

Eco Friendly Warehouse Evaporative Cooling System

,

Electric Commercial Evaporative Air Cooler

Product Description

High Performance Wet Curtain Environmentally Certified AC





Feature



Adopting high-performance wet curtains can significantly enhance cooling efficiency in various environments, from industrial settings to residential spaces. These advanced systems utilize evaporative cooling technology, which is known for its energy efficiency and effectiveness in maintaining comfortable temperatures, especially in hot climates.

One of the standout features of these wet curtains is their automatic cleaning function. This innovative mechanism helps prevent scaling and mineral buildup, which can compromise the performance of the cooling system over time. By ensuring that the wet curtains remain clean and free from obstructions, the automatic cleaning function not only enhances cooling efficiency but also extends the service life of the wet curtains. This results in lower maintenance costs and fewer replacements, making it a cost-effective solution in the long run.



Technical Parameter



Model KM22AA(3PH) KM22BA(3PH) KM22CA(3PH)
Air Outflow Method Bottom Air Outflow Side Air Outflow Top Air Outflow
Maximum Airflow (m3/h) 22000 22000 22000
National Standard Airflow (m3/h) 15000 14000 15000
Voltage/Frequency/Phase 380-415/50/3 380-415/50/3 380-415/50/3
Rated Input Power/Current (KW/A) 1.8 1.8 1.8
Sensible Cooling Capacity (KW) 58 51 58
Evaporation Efficiency (%) 80 76 80
Evaporation Capacity (L/h) 78 75 78
Noise (Sound Pressure Level) (dB(A)) 70 70 70
Water Storage (L) 40 40 40
Air Outlet Size (mm) 777×777 777×777 777×777
Overall Machine Size (mm) 1225×1225×1125 1305×1225×1125 1225×1225×1145
Overall Machine Net Weight (Kg) 87 86 88
Operating Weight (Kg) 141 137 142





Installation technical requirements:


1. The roof stent must have sufficient strength to withstand the weight of environmentally friendly air conditioners and maintenance personnel;
2. The size of the roof opening should not be greater than the installation size of the air duct;
3. The installation host must be horizontally displaced within the allowable tolerance range;
4. All zinc-iron tile duct openings must be waterproofed.
Environmentally friendly air conditioner reinforced concrete roof air supply installation





Technical requirements:


1. Use 40*40*4 corner iron frame to connect and fix it with reinforced concrete bolts;
2. The roof truss must have sufficient strength to withstand the weight of environmentally friendly air conditioner maintenance personnel;
3. The size of the roof opening should not be greater than the installation size of the air duct;
4. The installation host must be horizontally displaced within the allowable tolerance range;
5. All roof air duct outlets must be waterproofed.
