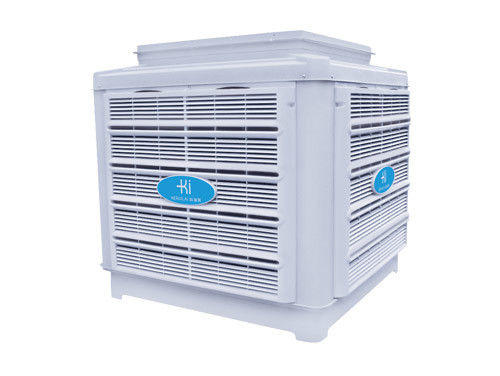

22000m3/H Eco Friendly Air Conditioner 380-415V/50HZ Electric

MOQ:	1Pcs
Price:	USD500-USD5000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	3 DAYS After Deposit
Payment Method:	T/T,D/A,Western Union,MoneyGram
Supply Capacity:	1500SET/MONTH

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE,ISO,SGS

Max Airflow Rate:

22000(m3/h)

Airflow Style:

Axis-flow

Control Type:

Remote Control

Noise Level:

≤75Db(A)

Power Source:

Electric

Model:

KM22

Voltage:

1.8KW

Smart Features:

Schools, Factories, Supermarkets, Industrial Workshops

Highlight:

22000m3/H Eco Friendly Air Conditioner

22000m3/H eco friendly ac

Electric Eco Friendly Air Conditioner

Product Description

Bottom Air Outflow Environmentally Certified AC 22000m3/h 380-415V/50HZ

Technical Parameter

Model	KM22AA(3PH)	KM22BA(3PH)	KM22CA(3PH)
Air Outflow Method	Bottom Air Outflow	Side Air Outflow	Top Air Outflow
Maximum Airflow (m3/h)	22000	22000	22000
National Standard Airflow (m3/h)	15000	14000	15000
Voltage/Frequency/Phase	380-415/50/3	380-415/50/3	380-415/50/3
Rated Input Power/Current (KW/A)	1.8	1.8	1.8
Sensible Cooling Capacity (KW)	58	51	58
Evaporation Efficiency (%)	80	76	80
Evaporation Capacity (L/h)	78	75	78
Noise (Sound Pressure Level) (dB(A))	70	70	70
Water Storage (L)	40	40	40
Air Outlet Size (mm)	777×777	777×777	777×777
Overall Machine Size (mm)	1225×1225×1125	1305×1225×1125	1225×1225×1145
Overall Machine Net Weight (Kg)	87	86	88
Operating Weight (Kg)	141	137	142

Feature

• Use high-performance wet curtains to improve cooling efficiency
• It has automatic cleaning function to prevent wet curtains from being scaled and extend the service life of wet curtains
• Automatic drainage function

Installation technical requirements:

1. The roof stent must have sufficient strength to withstand the weight of environmentally friendly air conditioners and maintenance personnel;
2. The size of the roof opening should not be greater than the installation size of the air duct;
3. The installation host must be horizontally displaced within the allowable tolerance range;
4. All zinc-iron tile duct openings must be waterproofed.
Environmentally friendly air conditioner reinforced concrete roof air supply installation

Technical requirements:

1. Use 40*40*4 corner iron frame to connect and fix it with reinforced concrete bolts;
2. The roof truss must have sufficient strength to withstand the weight of environmentally friendly air conditioner maintenance personnel;
3. The size of the roof opening should not be greater than the installation size of the air duct;
4. The installation host must be horizontally displaced within the allowable tolerance range;
5. All roof air duct outlets must be waterproofed.
