Product Details:
|
| High Light: | 25.4A Industrial Water Air Cooler,11kW Industrial Water Air Cooler,26505CFM Industrial Water Air Cooler |
||
|---|---|---|---|

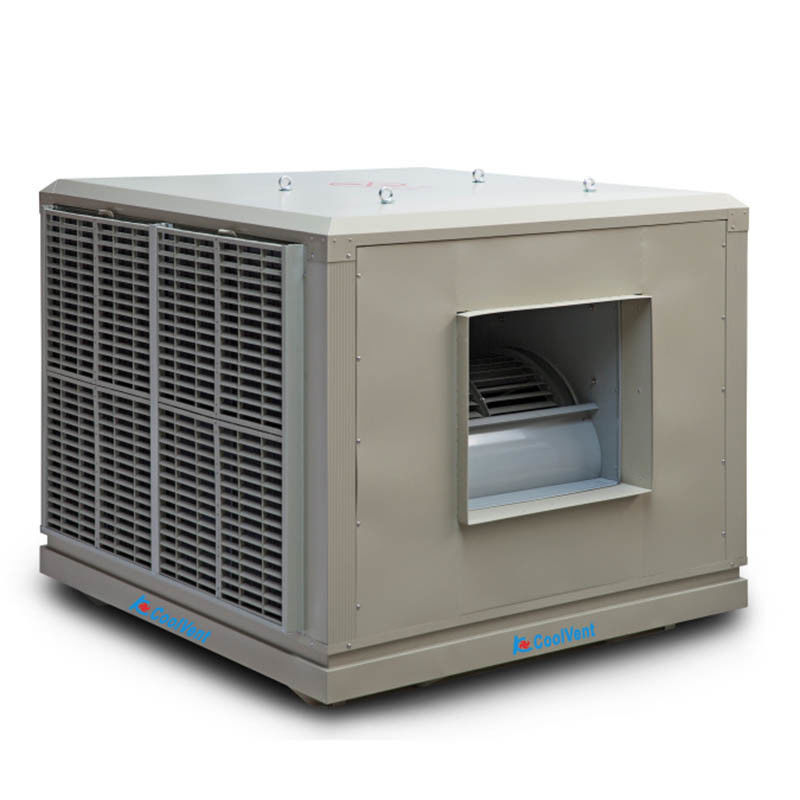

KCoolVent KCV-45AS Industrial Evaporative Cooler, Ducting Centrifugal Fan 11kW 26,505CFM for Large Space Cooling
| Factory Model | Power (kW) | Air Flow (m3/h) |
Specification & Features | Weight, Size & Loading quantity |
| KCV-45DS Down discharge |
11.0kW | 45,000 ㎥/h 26,505 CFM |
||
| Power / current:11.0kW / 25.4A | ||||
| Voltage / Frequency 380-415V / 50~60Hz | NW./GW.: 580/-(KG) | |||
| Motor class Grade F, IP55, copper wire motor | ||||
| Steel fan wheel / Centrifugal fan | Product size: | |||
| LCD panel control | 2000*2000*H1700mm | |||
| 1 wind speed | ||||
| Noise level <= 91dB(A) | 20'GP: 3pcs | |||
| Water tank capacity 100L | 40'HQ: 6pcs | |||
| Water consumption 120L/H | ||||
| KCV-45AS Side discharge |
11.0kW | 45,000 ㎥/h 26,505 CFM |
Ducting distance 65-80 meters | |
| Air pressure 510Pa | ||||
| Sizes of cooling pad: 1000x1000x100mm *4 pcs | ||||
| 3pcs of cooling pad for side charge unit | ||||
| Size of air outlet: L858*H766mm | ||||
| Applicable area(㎡) 300-450 m² | ||||
| 1)Water shortage protection & alarm | ||||
| KCV-45BS Top discharge |
11.0kW | 45,000 ㎥/h 26,505 CFM |
2)Stainless steel bottom base, top cover and | |
| stand column, plastic cooling pad frame with | ||||
| dust filters and cooling pads-5090 | ||||
| 3)Efficient fan motor-4pole 1460RPM | ||||
| 4)Auto-protetive device | ||||
| 5)Balanced heavy-duty steel fan wheel | ||||
| 6)Powder-painted, corrosion resistant stainless | ||||
| steel in 0.8-1.2mm thick | ||||
