Product Details:
|
| High Light: | 7.5kW Industrial Evaporative Cooler,35000M3/H Industrial Evaporative Cooler,20615CFM Industrial Evaporative Air Cooler |
||
|---|---|---|---|

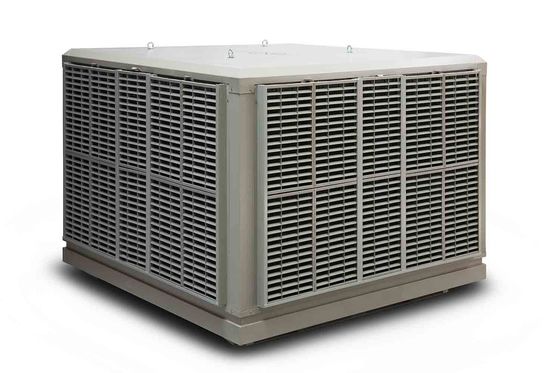

KCoolVent KCV-35DS Industrial Evaporative Cooler, Ducting Centrifugal Fan
7.5kW 35,000M3/H 20,615CFM for Space Cooling
| Factory Model | Power (kW) | Air Flow (m3/h) |
Specification & Features | Weight, Size & Loading quantity |
| KCV-35DS Down discharge |
7.5kW | 35,000 ㎥/h 20,615 CFM |
||
| Power / current:7.5kW / 15.4A | ||||
| Voltage / Frequency 380-415V / 50~60Hz | NW./GW.: 450/-(KG) | |||
| Motor class Grade F, IP55, copper wire motor | ||||
| Steel fan wheel / Centrifugal fan | Product size: | |||
| LCD panel control | 1800*1800*H1400mm | |||
| 1 wind speed | ||||
| Noise level <= 88dB(A) | 20'GP: 3pcs | |||
| Water tank capacity 70L | 40'HQ: 6pcs | |||
| Water consumption 80L/H | ||||
| KCV-35AS Side discharge |
7.5kW | 35,000 ㎥/h 20,615 CFM |
Ducting distance 45-55 meters | |
| Air pressure 470Pa | ||||
| Sizes of cooling pad: 1000x1000x100mm *4 pcs | ||||
| 3pcs of cooling pad for side charge unit | ||||
| Size of air outlet: L782*H700mm | ||||
| Applicable area(㎡) 200-300 m² | ||||
| 1)Water shortage protection & alarm | ||||
| KCV-35BS Top discharge |
7.5kW | 35,000 ㎥/h 20,615 CFM |
2)Stainless steel bottom base, top cover and | |
| stand column, plastic cooling pad frame with | ||||
| dust filters and cooling pads-5090 | ||||
| 3)Efficient fan motor-4pole 1460RPM | ||||
| 4)Auto-protetive device | ||||
| 5)Balanced heavy-duty steel fan wheel | ||||
| 6)Powder-painted, corrosion resistant stainless | ||||
| steel in 0.8-1.2mm thick | ||||
